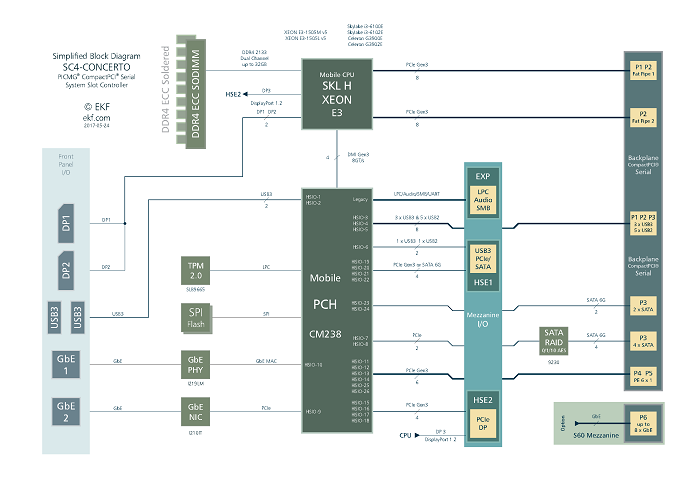

- 概要
- CompactPCI Serial (PICMG CPCI-S.0) CPU カード
- ユーロカードサイズ 100x160mm
- 高さ 3U
- フロントパネル 4HP (8HP/12HP assembly with optional mezzanine side card)
- フロントパネル I/O, 2 x USB3, 2 x DisplayPort, 2 x GbE (標準構成時)
- バックプレーン通信 PCI Express Gen3, SATA 6G, USB 3.0, Gigabit Ethernet
- ローカルメザニン拡張オプション, COTS およびカスタム仕様ボード
- プロセッサ
- Intel Kaby Lake-H mobile platform with ECC (CM238 mobile workstation PCH)
- Intel Xeon processor E3 v5 family (mobile workstation)
- Xeon E3 1505M v5, 2.8/3.7GHz, 8M, 4C/8T, DDR4 2133 ECC, 45/35W, GT2, vPR
- Xeon E3 1505L v5, 2.0/2.8GHz, 8M, 4C/8T, DDR4 2133 ECC, 25W, GT2, vPRO
- 6th Generation Intel Core mobile processor
- i3 6100E, 2.7GHz, 3M, 2C/4T, DDR4 2133 ECC, 35W, GT2
- i3 6102E, 1.9GHz, 3M, 2C/4T, DDR4 2133 ECC, 25W, GT2
- G3900E, tbd GHz, 2M, 2C/2T, DDR4 2133 ECC, 35W, GT1
- G3902E, tbd GHz, 2M, 2C/2T, DDR4 2133 ECC, 25W, GT1
- ファームウェア
- Phoenix UEFI (Unified Extensible Firmware Interface) with CSM*
* ) CSM (Compatibility Support Module) emulates a legacy BIOS environment,
which allows to boot a legacy operating system such as DOS, 32-bit Windows
and some RTOS
- Fully customizable by EKF
- Secure Boot and Measured Boot supported - meeting all demands as specified
by Microsoft
- Windows, Linux and other (RT)OS supported
- Intel AMT supported for Intel Xeon E3 v5 (disabled by default, must be
enabled via BIOS setup)
- メインメモリ
- Integrated memory controller up to 32GB DDR4 2133 ECC +ECC
- DDR4 +ECC soldered memory up to 16GB
- DDR4 +ECC SO-DIMM memory module socket up to 16GB
- グラフィックス
- Integrated HD Graphics Engine, 3 symmetric independent displays
- 3D HW acceleration DirectX12, OpenCL 2.x, OpenGL 4.3/4.4, ES 2.0
- HW video decode/encode HEVC, VP9, JPEG
- Content protection
- Front panel options: Dual DisplayPort (DP) connectors
- 3rd DisplayPort optional via Type-C connector on low profile mezzanine
card
- 最大解像度 4096 x 2304 @60Hz (any DisplayPort, concurrent operation)
- DisplayPort 1.2 Multi-Stream Transport (MST) - display daisy chaining
- MST max resolution via single DP connector 2880x1800@60Hz (2 displays),
2304x1440@60Hz (3 displays)
- Integrated audio (3 independent audio streams)
- ネットワーク
- Up to 10 networking interfaces in total - 2 x front RJ45 GbE, option 8
x backplane or 4 x M12-X front
- 1000BASE-T, 100BASE-TX, 10BASE-T connections
- Front port 1 - I219LM with Intel AMT support
- Front port 2 - Intel I210-IT -40℃ to +85℃ operating temperature GbE NIC
w. integrated PHY
- IPv4/IPv6 checksum offload, 9.5KB Jumbo Frame support, EEE Energy Efficient
Ethernet
- IEEE 802.1Qav Audio-Video-Bridging (AVB) enhancements for time-sensivitive
streams
- IEEE 1588 and 802.1AS packets hardware-based time stamping for high-precision
time synchronization
- Backplane Gigabit Ethernet option w. S80-P6 mezzanine module - I210-IT
NIC & Marvell Peridot switch
- Option front panel M12 X-coded GbE ports with SCL-RHYTHM side card (8HP
front panel width)
- チップセット
- Intel CM238 Mobile Workstation Platform Controller Hub (PCH)
- PCIe Gen3 8GT/s
- SATA 6G
- USB3
- GbE
- LPC, Audio, Legacy
- オンボード・ビルディングブロック
- Additional on-board controllers, PCIe based
- 1 x Gigabit Ethernet controller Intel I210IT
- 1 x Gigabit Ethernet PHY Intel I219LM
- IEEE 1588-2008 Precision Time Protocol supported including PPS and PPM
signals
- SATA 6G RAID controller Marvell 88SE9230 ARM powered subsystem for host
CPU offload
|
- セキュリティ
- Trusted Platform Module (option)
- TPM 2.0 for highest level of certified platform protection
- Infineon Optiga SLB 9665 cryptographic processor
- Conforming to TCG 2.0 specification
- AES hardware acceleration support (Intel AES-NI)
- フロントパネル I/O 4HP
- 2 x Gigabit Ethernet RJ45 (1 = PCH & I219LM - Intel AMT, 2 = I210IT)
- 2 x DisplayPort (from processor integrated HD graphics engine, standard
latching DP receptacles
- 2 x USB 3.0
- Option 2 x Type-C USB 3.1 Gen1 (requires low profile mezzanine expansion
card w. front panel I/O)
- Support for Type-C locking plugs (dual screw) according to the Locking
Connector Spec. Rev. 1.0
- Option DisplayPort Alt Mode on lower Type-C connector (3rd video monitor
output)
- CompactPCI Serial バックプレーン
- PICMG CompactPCI Serial CPU card & system slot controller
- 16 x PCIe Gen3 8GT/s (2 links x 8 for two fat pipe slots, derived directly
from the Intel Xeon or Core CPU
- 6 x PCIe Gen3 8GT/s (6 links x 1 for peripheral slots)
- 2 x SATA 6G (from CM238 PCH)
- 4 x SATA 6G (Marvell hardware RAID controller)
- 5 x USB2, 3 x USB3 (from CM238 PCH)
- Option 8 x Gigabit Ethernet (Marvell 88E6390 GbE switch, requires low profile mezzanine expansion card)
- ローカル・エクスパンション
- Mezzanine side card connectors for local expansion
- Low profile mezzanine modules available (4HP front panel) and also side
cards (8HP F/P assembly)
- P-EXP - Legacy (from PCH)
- P-HSE1 - configurable as 4 x SATA 6G or 4 x PCIe (from CM238 PCH), 1 x
USB3
- P-HSE2 - 4 x PCIe (from CM238 PCH) & 3rd DisplayPort (from CPU)
- 4HP Low profile mezzanine module preferred options:
- C47-MSATA Mezzanine module - 2 x mSATA SSD sockets
- C48-M2 Mezzanine module - 2 x M.2 2280 SATA SSD sockets
- S20-NVME Mezzanine module - 1 x M.2 2280 NVMe SSD socket, 1 x Type-C USB
F/P connector
- S40-NVME Mezzanine module - 1 x M.2 2280 NVMe SSD socket, 1 x M.2 2280
SATA SSD socket, 2 x Type-C USB F/P Connector (1 connector enabled for
DisplayPort alternate mode)
- S80-P6 Mezzanine module - 1 x M.2 2280 NVMe SSD socket, 8 x Gigabit Ethernet
via P6 backplane connector (TSN/AVB switch based solution)
- Custom specific storage & I/O mezzanine module design
- 8HP/12HP Mezzanine side card options
- SCL-RHYTHM Quad port GbE NIC, front panel M12 X-coded receptacles, dual
M.2 (NVMe/SATA) SSD
- SCZ-NVM Dual M.2 NVMe SSD, quad UART
- Custom specific side card design - I/O and storage
- 耐環境性能
- ドイツにて設計および製造
- ISO 9001 認証品質
- 長期供給可能
- 堅牢・過酷環境ソリューション
- Coating, sealing, underfilling 対応可能
- RoHS compliant
- 動作温度範囲 0℃ 〜 +70℃
- 動作温度範囲 -40℃ 〜 +85℃ (産業用温度範囲・温度拡張) 要御要望
- 保存温度範囲 -40℃ 〜 +85℃, max. gradient 5℃/min
- 湿度 5% 〜 95% RH 結露無
- 高度 -300 〜 +3000m
- 衝撃 15g 0.33ms, 6g 6ms
- 振動 1g 5-2000Hz
- MTBF 21.2 年
- EC Regulatory EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)
- RT OS Board Support Packages 及び Driver サポート
- LynxOS - on request
- On Time RTOS-32 - on request
- OS-9 - on request
- QNX
- Real-Time Linux (RT Patch) - on request
- RTX - on request
- VxWorks 5.5 & 6.9 - on request
- VxWorks 7.0 - on request
- Others - on request
|
