  ■MERCATORII 主な特徴
MERCATORII


写真をクリックすると拡大写真をご覧になれます。

MERCATORII は、4 Ethernet およびデジタル I/O の PC/104-Plus 拡張モジュールです。
動作温度範囲は -40℃〜+85℃ (温度拡張) で堅牢な設計で、過酷な環境のアプリケーションに適しています。












PDF  PDFカタログ(445KB)
見積り依頼
AWMERCATORII-1 201130
  1. Ethernet
    • Ethernet ポート数: 4
    • プロトコル: IEEE 802.3 10Base-T and 100Base-TX
    • 最大データレート: 100Mbps
  2. デジタル I/O
    • ライン数: 24
    • 方向
      • Programmable: Ports A and B individually programmable for all input or all output. Port C programmable in 4-bit groups for input or output
    • 入力電圧
      • Low: -0.5V min, 0.8V max
      • High: 2.0V min, 5.5V max
    • 出力電圧
      • Low 0.0V min, 0.4V max
      • High 3.0V min, Vcc - 0.4V max
    • プルアップ抵抗: 10k オーム プルアップ
  1. I/O ヘッダー
    • Ethernet ポート: 6-pin straight male headers
    • Digital I/O: 26-pin (2x13) .025" square pin header on .1" centers
  2. ケーブル
    • Ethernet ポート:ケーブル NO. C-PRZ-02
    • Digital I/O: ケーブル NO. C-26-18
  3. PC/104-Plus バス
    • Both ISA and PCI stackthrough headers installed
  4. 電源電圧
    • +5VDC 10%
  5. 動作温度
    • -40℃ 〜 +85℃ (温度拡張)
  6. 動作湿度
    • 5% 〜 95% 結露無
  7. 形状
    • 3.55" x 3.775" (PC/104-Plus standard)

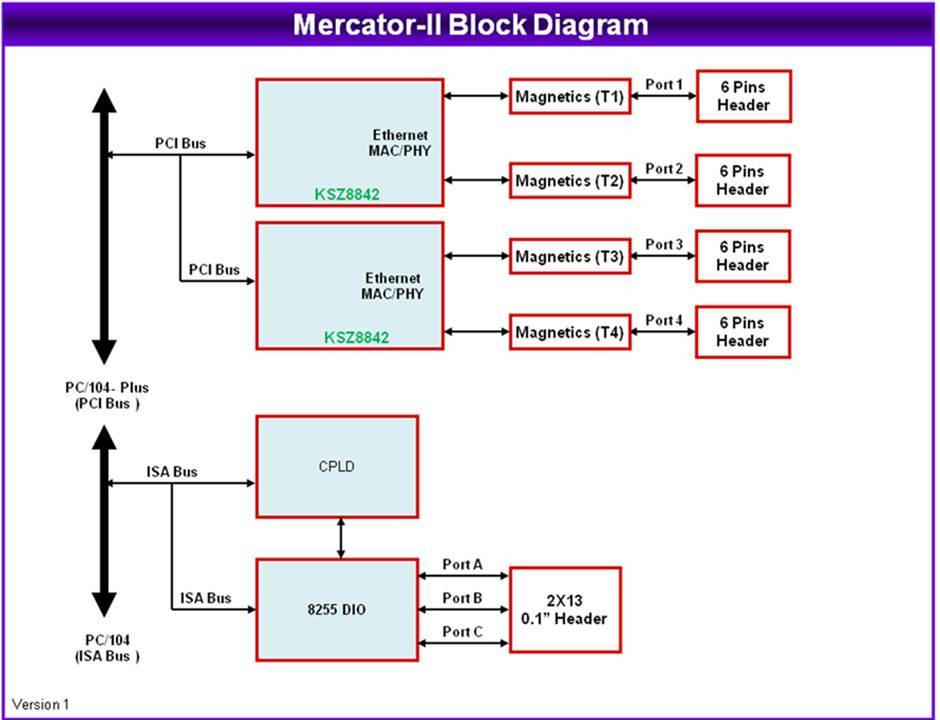

システムブロック図

システムブロック図
