  EPSM-10GX4 主な特徴
EPSM10GX4


写真をクリックすると拡大写真をご覧になれます。

EPSM-10GX4 は,マネージド 24 ポート Gigabit Ethernet スイッチ および 4x 10G ポート IEEE-1588 PTP サポート モジュールです。
動作温度範囲は -40℃〜+85℃ (DSC-provided heat sink or heat spreader, 温度拡張) で堅牢な設計で、過酷な環境のアプリケーションに適しています。
RoHS 規格適合です。











見積り依頼
AWEPSM10GX4-1 210129
  1. マネージド Ethernet スイッチ
    • ポート数
      • 24 10/100/1000Mbps Ethernet ports with non-blocking wire-speed performance
      • 4 10G SFI ports for fiber or copper transceivers
      • Magnetics and 10G transceivers required on carrier board
    • インプリメンテーション: 12 PHYs integrated on main board; QSGMII signals for additional 12-port PHY on carrier board
    • オンボード・メモリ: 4 Mb パケットメモリ
    • ネットワーク管理: SNMP v1/v2c/v3; Web GUI and command line interface (CLI)
    • Power Management
      • ActiPHY and PerfectReach power management reduce power for shorter cable lengths and shut down power to disconnected ports
    • シリアルポート: 1 serial port for host interface; RS-232 transceiver required on carrier board
    • インジケータ
      • Serial data stream provided for 2 LEDs per port; decoder logic required on carrier board
  1. 相互接続
    • Dual Samtec ERF5 series connectors, 120 pins each, 10mm board to board spacing
  2. 電源電圧
    • 5VDC +/-5%
  3. 消費電力
    • 20W max, all ports active
  4. 動作温度
    • -40℃ 〜 +85℃ with DSC-provided heat sink or heat spreader (温度拡張)
  5. 冷却
    • Heat sink, 55x84mm, 16.6mm height
    • Heat spreader, 55x104mm, 7.6mm height
  6. 形状
    • 55 x 84mm (COM Express Type 10 と同じ)
  7. 重量
    • 85g
  8. RoHS 規格適合

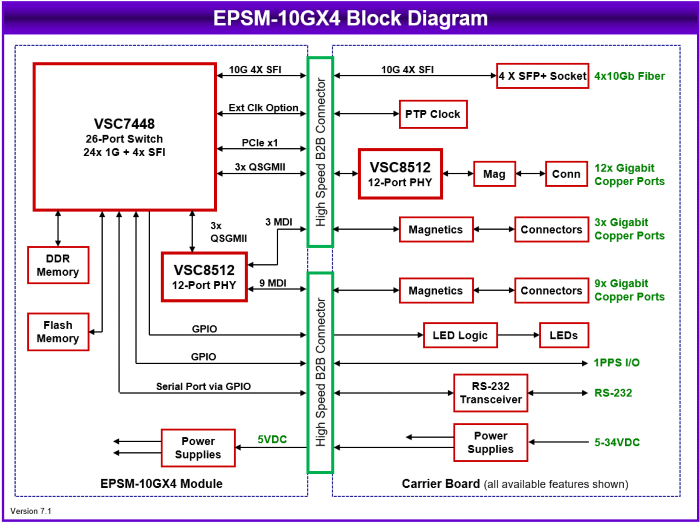

システムブロック図

システムブロック図
