  ■EMERALD-MM-OPTO 主な特徴
EMERALDMMOPTO


写真をクリックすると拡大写真をご覧になれます。

EMERALD-MM-OPTO は、4 ポート光学的絶縁 RS-232/422/485 PC/104 モジュールです。
動作温度範囲は -40℃〜+85℃ (温度拡張) で堅牢な設計で、過酷な環境のアプリケーションに適しています。
RoHS 規格適合です。










PDF  PDFカタログ(132KB)
見積り依頼
AWEMERALDMMOPTO-1 201030
  1. シリアルポート
    • ポート数: 2 または 4 RS-232/422/485
    • データレート
      • RS-232, 230.4kbps max
      • RS-422/485: 460.8kbps max
    • 信号
      • RS-232: RXD, TXD, RTS, CTS
      • RS-422/485: RXD, TXD
    • アドレス: 8 preconfigured standard I/O address options; custom addresses available
    • インタラプト
      • IRQ levels 2, 3, 4, 5, 6, 7, 10, 12, 15;
      • Interrupt sharing supported
    • 絶縁: 000V AC or DC, port to port or port to system
    • ターミネーション: 150Ω with 1KΩ pull-up/pull-down
  2. UART
    • 16C2850 with 128-byte FIFO and auto-flow control
  3. デジタル I/O
    • 24 programmable direction using 82C55
  1. DIO ターミネーション
    • 10KΩ pull-up
  2. コネクタ
    • Individual 10-pin connector for each serial port; 26-pin connector for digital I/O
  3. PC/104 バス
    • PC/104 16-bit bus (8-bit data)
  4. 電源電圧
    • +5VDC @ 300mA typical, all outputs open
  5. 消費電流
    • 80mA typical, all outputs unloaded
  6. 動作温度
    • -40℃ 〜 +85℃ (温度拡張)
  7. 形状
    • 3.55" x 3.775"
  8. RoHS 規格適合

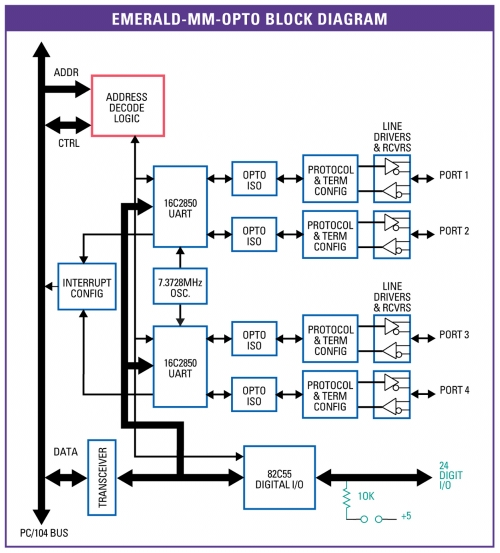

システムブロック図

システムブロック図
