- 1.ポートタイプ
- 8x 10/100BASE-T マネージド・スイッチ (Model: 09NM30-00)
- 8x 10/100BASE-T マネージド・スイッチ、 8x PoE + PSE
- 最大出力60W (Model: 09NM30-01)
- 8x 10/100/1000BASE-T マネージド・スイッチ
- (Model: 09NM30-02)
- 8x 10/100/1000BASE-T マネージド・スイッチ、 8x PoE + PSE
- 最大出力60W (Model: 09NM30-03))
- 2.プロトコルおよび機能
- サポート ネットワーク
- ・IPv4
- ・IPv6 Ready
- ・IPv6 Ready Phase 2
- ホスト・コフィグレーション・プロトコル
- ・DHCP Server / Client
- ・DHCP Option 82
- ・DHCP Snooping
- ・DHCP ARP Inspection
- DNS
- ・DNS Client (RFC 2136)
- ・DNS Proxy (RFC 5625)
- 3.ポートおよびポートコントロール
- Energy Efficient Ethernet (IEEE 802.3az)
- ETH Signal Equalization and Power Control
- Port state (admin), speed, duplex mode and flow control
- Port frame size (Jumbo Frames: 9216 Bytes max.)
- Port status (link monitoring) and statistics (MIB counters)
- Port VeriPHY (cable diagnostics), ActiPHY™
- PerfectReach™
- Inband management (VRAP)
- 4.スイッチマネージメントおよびモニタリング
- OAM
- ・Link OAM: IEEE 802.3ah (a.k.a. EFM)
- ・CFM: IEEE 802.1ag
- ・ITU-T Y.1731 Down-MEP, ITU-T Y.1731 Up-MEP,
- ITU-T Y.1731 MIP
- ・MEF E-LMI Configuration Management
- ・SMAC/DMAC Swap
- ・OAM Performance Monitoring MEF35 Phase 1
- SNMP Management v1, v2c, v3
- (RFC 1212, 1901-1908, 3411-3418)
- SNMP v1 Traps (RFC 1157) with multiple destinations
- LLDP (IEEE 802.10AB)
- TIA 1057 LLDP-MED extensions
- CDP (Cisco Discovery Protocol)
- RMON Group 1, 2, 3 and 9 (RFC 2819)
- Syslog (RFC 5424)
- sFlow (RFC 3176)
- Port and Flow Mirroring
- Fallback Firmware
- 5.コフィグレーション制御
- TFTP (RFC 1350)
- Fallback Configuration
- Configurable by Web / CLI / Telnet /SSL / Console
- 6.リダンダンシーおよびフローコントロール
- Static Link Aggregation
- IEEE 802.3ad Link Aggregation Protocol
- IEEE 802.3X Back Pressure Flow Control
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid STP (RSTP)
- IEEE 802.1s Multiple STP (MSTP)
- BDPU Guard / Restrict Role
- ITU-T:G.8032 Ring Protection
- ITU-T:G.8031 Linear Protection
- IEEE 802.1ag / ITU-T Y.1731 Connectivity Fault Protection
- Loop Protection
- 7.セキュリティー
- Network Access Server (NAS):
- ・Port-based IEEE 802.1x
- ・Single and multiple IEEE 802.1x
- ・MAC based authentication
- ・VLAN and QOS assignment
- ・Guest VLAN
- RADIUS accounting (RFC 2866ff)
- MAC address limit and MAC freeze
- IP MAC Binding / Binfind dynamic to static
- TACACS+ Accounting
- Web and CLI Authentication
- IP Source guard
- Authorization (15 user levels)
- DHCP Snooping (RFC 2132)
- Dynamic ARP Inspection
- 8.VLAN
- VLAN Tagging and Trunking (IEEE 802.1Q)
- Supported VLAN Types:
- ・Private Static VLAN (RFC 5517)
- ・MAC, Protocol, IP-Subnet and Port based VLAN (IEEE 802.1Q)
- ・VOICE VLAN (IEEE 802.1Q, IEEE 802.1P)
- Dynamic VLANs (GVRP)
- Multicast VLAN Registration (IEE 802.1ak MRP and MVRP)
- 9.マルチキャスト
- IPv4 Internet Group Management protocol (IGMP) v1, v2, v3
- Maximum number of IGMP Groups:
- ・8000 for Layer2
- ・8000 for IP4/IP6
- IPv6 Multicast Listener Protocol (MLD) v1, v2
- Multicast VLAN registration protocol (MVR)
- MRP/GMRP Multicast Registration Protocol (IEEE 802.1ak)
- 10.QoS
- Active Priority Queues per Port: 8
- Class of Service (IEEE 802.1p)
- Port and queue egress shaper
- Storm control (for Unicast, Broadcast, Multicast, unknown)
- Port and Queue Egress shaper
- Scheduler Mode (weighted and fair scheduling)
- Port Default/User Priority and Input Priority Mapping
- DCSP remarking (RFC 2474)
- QoS control list (QCL mode)
- Random Early Detection (RED, RFC 2309)
- Policers (port, service, queue and global/VCAP - ACL)
- DiffServ (RFC 2474) and Tag remarking
|
- 11.シンクロナイゼーション
- NTPv4 Client (RFC 5005)
- IEEE 1588v2 PTP with one-step and two-step clock
- IEEE 1588v2 PTP with redundant master clocks
- IEEE 1588v2 boundary clock
- IEEE 1588v2 unicast and multicast support
- 12.サポート産業用イーサネット
- EtherNet/IP
- Modbus/TCP
- Profinet (Essential: IEEE 802.1Q)
- 13.Power Over Ethernet特徴
- Power over Ethernet 機能 全ポート
- (Models: 09NM30-01 and 09NM30-03)
- ・PSE (Power Sourcing Equipment) 機能
- ・最大出力 トータル 60W
- ・PoE 自動モードでスタート
- ・Run time PoE+ behaviour programmable via service interface
- 14.サービスインタフェース
- コンソールインタフェース
- ・USB 2.0 Series B リアコンソールインタフェース
- (for local system management)
- Webインタフェース
- ・Webベースのコントロール、マネージメントインタフェース
- 全Ethernetポートから可能

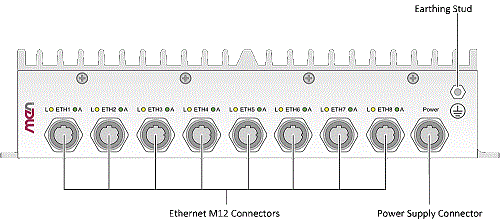

- 15.フロント・インタフェース
- イーサネット
- ・8 X M12コネクタ 100BASE-T (100 Mbit/s)
- (Models: 09NM30-00 and 09NM30-01) または
- ・8 X M12コネクタ 1000BASE-T (1 Gbit/s)
- (Models: 09NM30-02 and 09NM30-03))
- イーサネット LED
- 電源供給
- ・1 X M12コネクタ 広範囲電圧入力
- 電源ステータスLED
- ・供給安定性、電圧範囲妥当性
- 16.リア・インタフェース
- USB
- ・1 X Series A コネクタ, USB 2.0 (480 Mbit/s)
- 17.電気的特性
- 電源供給
- ・14.4 VDCから154VDC
- ・定格電圧 24,36,48,72,96,110 VDC EN 50155
- ・電源中断 class S2 (10ms)
- ・Code H, Starting Profile Level II (50ms @ min 8V),
- ISO 167501
- 消費電力
- ・+10 W Max. (Models: 09NM30-00 and 09NM30-02)
- ・+85 W Max. with 60W PoE Max.
- (Models: 09NM30-01 and 09NM30-03)
- 18.機械的特性
- 形状: H 44.1mm x W 220 mm x L 164 mm
- 重量: 1.5kg 以下 (構成に依存します)
- 19.耐環境性能
- IPプロテクション
- IP40 (フロントパネルを除く)
- フロントプレート IP30
- IP65 (オプション)
- 動作温度
- -40℃〜+70 ℃(screened) (10分間 +85℃)
- EN50155 class Tx 準拠
- ファンレス動作
- 保存温度
- -40 〜 +85℃
- 動作湿度
- 結露無しで最大95%
- 保存湿度
- 結露無しで最大95%
- 高度
- -300m 〜 +3,000m
- Shock: 50 m/s2、30ms(EN61373)
- Vibration (function): 1 m/s2, 5 Hz - 150 Hz (EN 61373)
- Vibration (lifetime): 7.9 m/s2, 5 Hz - 150 Hz (EN 61373)
- *内部コンポーネントはコーティング済み
- 20.信頼性
- MTBF: tbd
- 21.安全規格
- フレーマビリティ
- ・UL94V-0
- 耐火性
- ・EN 45545-2
- 電気的安全性
- ・EN 60950-1, class I equipment
- 22.EMC
- 自動車関連
- ・ECE R10 (prepared for E-Mark)
- ・ISO 16750-H-K-D-C-C-IP30 (On request)
- 鉄道関連
- ・EN 50121-3-2
- 23.ソフトウエア
- コンフィグレーションおよびマネージメント用ファームウエア
|
