   FLOYD-BB

FLOYD-BB : NVIDIA Jetson Nano 及び Xavier NX 用キャリアボード


 FLOYD BB01

FLOYD-BB01 ( Jetson Nano インストール )


 FLOYD BB02

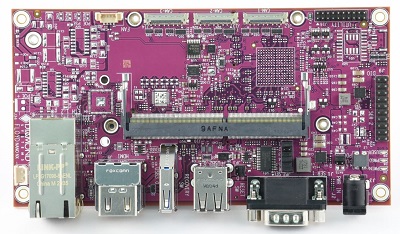

FLOYD-BB02 トップビュー



   FLOYD-BB は、 NVIDIA Jetson Xavier NX モジュールまたは Jetson Nano モジュール用の キャリアボードです。
インターフェイス回路、I/O コネクタ、カメラインターフェイス、電源、および追加の I/O を提供することにより、Nvidia Jetson Nano および Xavier NX モジュールを完全な組み込みシステムに変換します。
カメラ入力、2 PoE Gigabit Ethernet ポート, 3 MIPI/CSI 2/4-lane コネクタ、1 USB 3.0 ポート、 MiniCard, M.2 , Micro SD ソケット、 拡張 I/O など備えています。




FLOYD-BB 製品構成


Feature FLD-BB01 FLD-BB02
Gigabit Ethernet 2 1
PoE Both ports No
HDMI 2 1
Camera CSI 4-lane 3 3
USB 3.0 1 1
USB 2.0 2 2
M.2 2280 socket PCIe x1 PCIe x4
Minicard socket Full size PCIe + USB No
SD card Yes Yes
GPIO 3.3V 8 8
Serial 2x RS-232/422/485 1x RS-232
1x RS-232/485
CAN 2.0 1 (NX only) No


FLOYD ブロック図

FLOYD BB01 Blok Diagram

FLOYD BB02 Blok Diagram


主な特徴

  • 1 or 2 gigabit Ethernet ports
  • Optional PoE+ support (with external power source)
  • 2 HDMI 2.0a/b ports
  • 1 USB 3.0 port with type A connector
  • 2 USB 2.0 ports with type A connector; 1 port can serve as OTG
  • 8 GPIO with 3.3V logic levels
  • 2 serial ports with RS-232/422/485 (depending on model)
  • 3 dual/quad lane MIPI/CSI camera ports
  • 1 CAN port (NX module only)
  • 1 Mini PCIe socket with PCIe and USB support
  • 1 M.2 2280 PCIe x1 or x4 NVME socket
  • 形状: 147 x 76mm
  • 入力電圧: 12-24VDCt
  • 動作温度: -25℃ 〜 +80℃

 FLOYD BB

 ケーブル
 ケーブル  説明
 6981182  CANbus 2.0 dual port cable
 C-DB9M-2  erial port cable, 2x DB9M to 2x10 .1" socket



利用可能なモデル

  • FLD-BB01 : FLOYD キャリアボード、NVIDIA Jetson Xavier NX モジュールまたは Jetson Nano モジュール用
  • FLD-BB02 : FLOYD ベースボード、低コスト I/O 削減版
  • JB-FLD-BASE-01 : Jetbox Floyd kit, based on BB01 baseboard; includes all items except Nano / NX module and software
  • JB-FLD-BASE-02 : Jetbox Floyd kit, based on BB02 baseboard; includes all items except Nano / NX module and software

PDF  PDFカタログ(822KB)
