  ■EPSILON-8100 主な特徴
EPSILON8100


写真をクリックすると拡大写真をご覧になれます。

EPSILON-8100 は、マネージド 8 ポート Gigabit Ethernet スイッチ PC/104 モジュールです。
動作温度範囲は -40℃〜+85℃ (温度拡張) で堅牢な設計で、過酷な環境のアプリケーションに適しています。
RoHS 規格適合です。











PDF  PDFカタログ(239KB)
見積り依頼
AWEPSILON8100-1 201228
  1. マネージド Ethernet スイッチ
    • スイッチタイプ: Managed Layer 2+ switch
      Built-in MIPS 416MHz 24KEC microcontroller for configuration and management
    • ポート数: 8 10/100/1000Mbps Ethernet ports with non-blocking wire-speed performance
    • オンボード・メモリ: 4 Mb パケットメモリ
      Shared memory buffer with per-port & CoS memory management
    • MEF
      • Hierarchical MEF compliant policing & scheduling
      • MEF E-Lane, E-Line, and E-Tree services
    • フレームバッファ: Jumbo frame support at all speeds
    • VLAN
      • IEEE 802.1Q VLAN switch with 8K MACs and 4K VLANs
      • Push/pop up to two VLAN tags
      • Independent & shared VLAN learning (IVL, SVL)
    • マルチキャスト: IPv4 and IPv6 multicast group support
    • リマーキング: Dual leaky bucket policers with remarking and statistics
    • Classifier
      • 8 priorities and 8 CoS queues per port with strict or deficit-weighted round robin scheduling
      • Shaping/policing per queue and per port
    • Storm Control: Policing with storm control and MC/BC protection
    • Link Aggregation: IEEE 802.3ad
    • セキュリティ: Advanced security and prioritization available though multistage TCAM engine
    • RSTP: Rapid Spanning Tree Protocol (IEEE 802.1W) and MSTP
    • MIBs: Support for both WebStax and CEServices MIBs
    • Power Management
      • ActiPHY and PerfectReach power management
      • VeriPHY cable diagnostics
    • シリアルポート: 1 RS-232 port ホストインタフェース用
    • インジケータ LED
      • 18 status LEDs, two per port
      • 2 general purpose
    • 標準ケーブル: Standalone network switch, or in combination with a host computer
  1. 電源電圧
    • +5 から +36V DC/DC パワーサプライ
  2. 消費電力
    • 5.4W typ. at +5VDC
  3. 動作温度
    • -40℃ 〜 +85℃ (温度拡張)
  4. 形状
    • 90mm x 96mm
    • PC/104
  5. 重量
    • 99g ヒートシンク付
  6. MTBF
    • 624,170 h at 20 ℃
  7. RoHS 規格適合

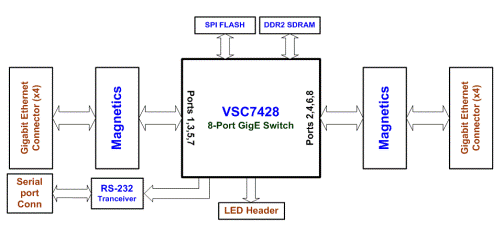

システムブロック図

システムブロック図
